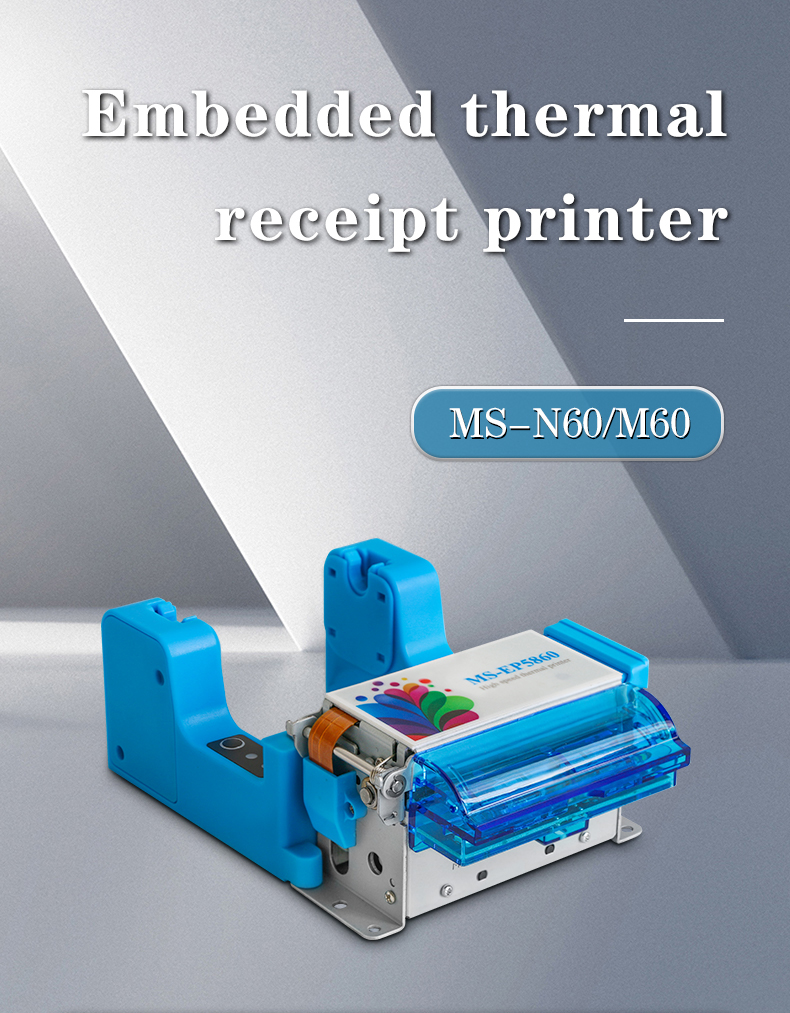

MS-N60/M60 is a new thermal receipt printer newly developed by Masung, which completely replaces the MS-D245 thermal receipt printer and can print thermal self-adhesive labels. MS-N60/M60 has a brand new upgrade of the working voltage, and the current working voltage is 12V±5%V, making the overall operation of the self-service machine more convenient. It has a high-brightness LED light paper outlet, and can configure the print head temperature, paper shortage, black mark, paper end, anti-blocking, anti-pull and other popular functions. MS-N60/M60 can be used in self-service express cabinets, supermarket lockers, self-service queuing machines, self-service ticket machines and other self-service receipt equipment The printing size of MS-N60 is 48mm; the printing size of MS-M60 is 56mm, with anti-blocking and anti-pull paper functions.

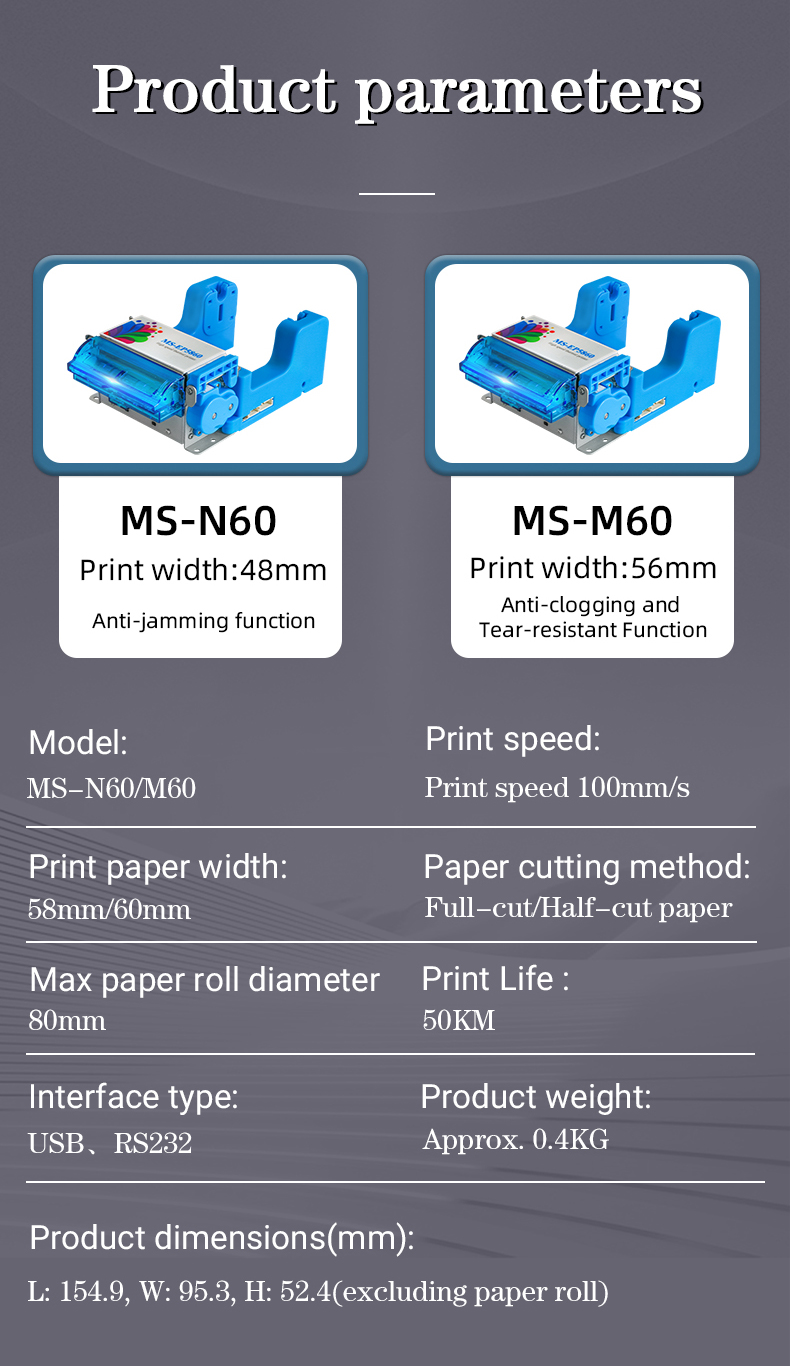

型号 | MS-N60&MS-M60 | |
Printing | Printing method | Line dot thermal printing |
Printing resolution | 203dpi | |
Printing line dots | 384dots/line | |
Printing speed | 100mm/s(max) | |
Printing width | 48mm（max） | |
Paper width | 58/60mm(related to the bracket baffle) | |
Paper thickness | 60-120um | |

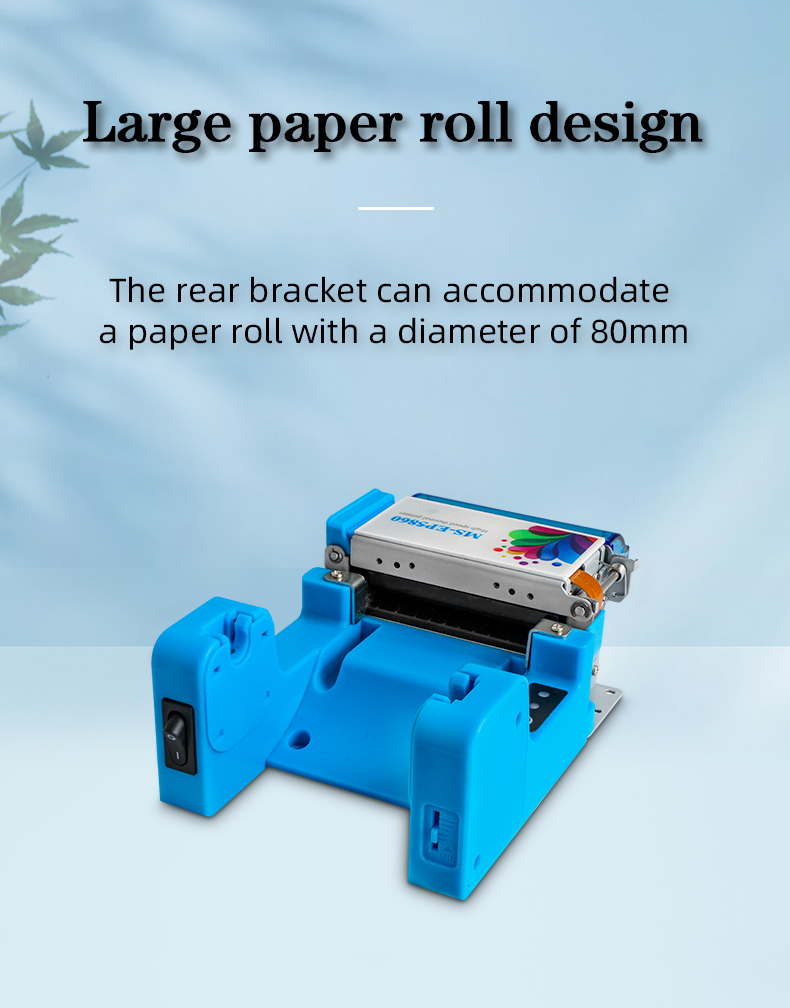

Paper roll can be loaded | Diameter 80mm(max) | |
Paper feeding method | Automatic paper suction/open cover to load paper | |
Paper cutting method | Full cut/half cut | |
Paper feeding printing life | 50KM | |
Printing format | Reverse, underline, italic, bold, etc. | |
Cutter life | 1 million times | |
Printing baud rate | 9600、19200、38400、57600、115200 | |
Character | ASCII | 9*17、12*24 |
Chinese characters | 24*24dot | |
Body sensor | Print head temperature | Temperature sensor |
Lifting rod detection | Touch switch | |
Paper shortage detection | Photoelectric sensor | |
Black mark detection | ||
Gap detection | ||
Paper end sensor | ||
Paper outlet sensor | Anti-blocking detection | Photoelectric sensor Normal paper outlet/anti-blocking and anti-pull paper outlet |
Anti-pull detection | ||
Paper outlet detection | ||
Human-computer interaction | Indicator light | Power light, abnormal light |
Paper outlet light | Blue light high brightness warning light bar | |
Button | Power switch button, paper feed button | |
Adjustment | Low paper alarm Remaining paper amount adjustment wrench | |
Conditions | Working voltage | 12 ± 5% V |
Average current | 2A@12V | |
Peak current | 5.5A | |

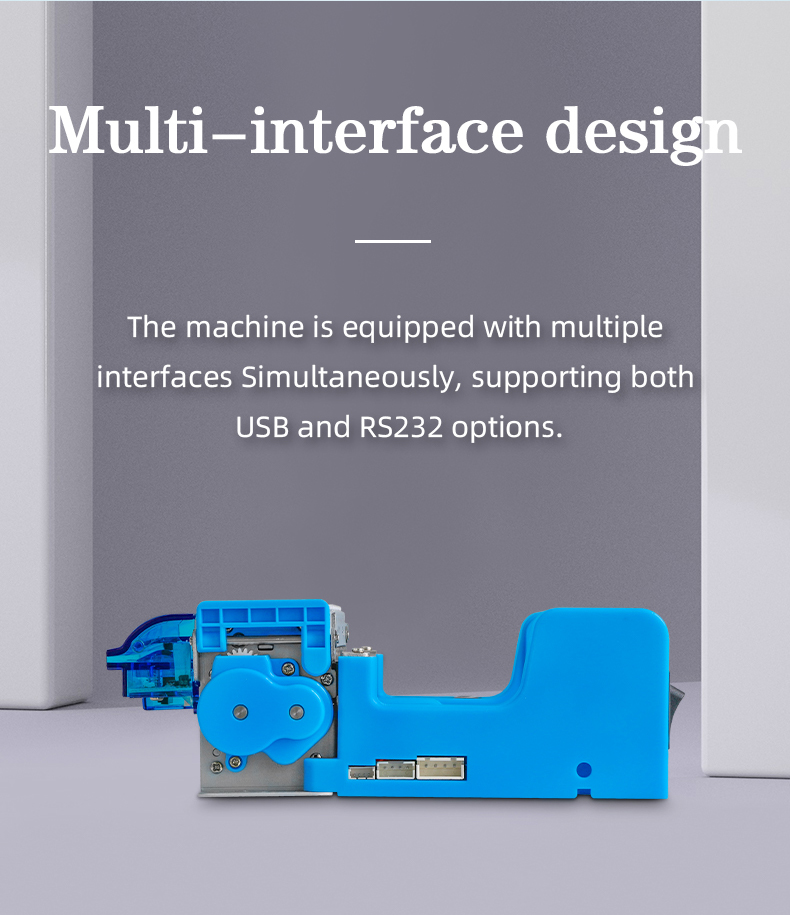

Standard interface | Power supply, RS232, USB | |
Special interface | Cash box (occupies RS232 interface) | |
Thermal paper specifications (thermal layer is located on the outer side of the roll) | Ordinary thermal paper roll | |
Thermal black mark paper roll | ||
Environment | Operating temperature | -10 ~ 50℃ (no condensation) |
Operating humidity | 20% ~ 85%RH (80%RH at 40℃) | |
Dimensions | Length | 154.9mm |
Width | 95.3mm | |
Height | 52.4mm | |
Weight | About 0.40KG (without paper roll) | |
